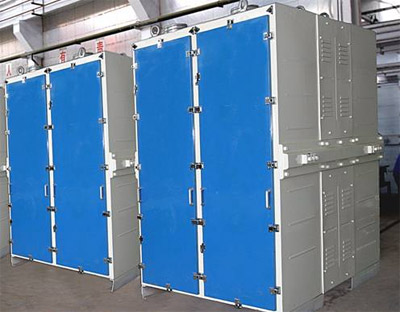

Flour Plansifter of Grain Cleaning Equipment
Plansifter is one of the main grain cleaning equipment in milling plants. It is mainly used for sieving and grading of materials after grinding. The plansifter have wide application in sieving and grading of powder materials in chemical, medicine, plastic and wine industries.
KFSP series flour plansifter produced by our factory has advanced level, which is pressed by large molding machine with special high-quality alloy steel plate. It is a new product with high technology, quality and performance. KFSP series plan-sifter adopts precision motor with compact and firm structure, reliable tightness, easy operation and installation. It has strong sieving capability for its various sieving routes.
|
Item
|
Technical Specifications
|
|||||
|
KFSP-4×22
|
KFSP-4×24
|
KFSP-6×24
|
KFSP-6×27
|
KFSP-8-×24
|
KFSP-8×27
|
|
|
Number of storehouse (pcs)
|
4
|
4
|
6
|
6
|
8
|
8
|
|
Sieve grid number per storehouse (grid)
|
22~24
|
22~27
|
22~27
|
27~30
|
24~27
|
27~30
|
|
Sieveing area (m2)
|
24.74~33.37
|
26.99~37.54
|
40.48~56.51
|
45.54~62.5
|
53.97~75.08
|
60.74~83.33
|
|
Rotating speed of principal axis (r/min)
|
~245
|
~245
|
~245
|
~245
|
~245
|
~245
|
|
Gyration diameter (mm)
|
~64
|
~64
|
~64
|
~64
|
~64
|
~64
|
|
Drive moter (kw)
|
(Y132S-6) 3
|
(Y132S-6) 3
|
(Y132S-6) 4
|
(Y132S-6) 4
|
(Y132S-6) 5.5
|
(Y132S-6) 5.5
|
|
Dimensions(cm)
|
178*241*221
|
178*241*240
|
255*241*240
|
255*241*250
|
335*249.5*240
|
335.5*249.5*255
|
|
Lowest installation (mm)
|
3540
|
3730
|
3730
|
3880
|
3730
|
3880
|
|
Height of sieve box (mm)
|
1960
|
2150
|
2150
|
2300
|
2150
|
2300
|
|
Collocation height of grid (mm)
|
1780
|
1970
|
1970
|
2120
|
1970
|
2120
|
|
Weight (kg)
|
2500
|
2620
|
3530
|
3700
|
4440
|
4670
|
