Large Scale Flour Mill Equipment

Depend on the support of many different factories, we can supply the different designs with different cost to meet different buyer's request.The capacity of the flour mill equipment we can do from 80 to 250TPD. Following is the general description:

Flour Mill Equipment

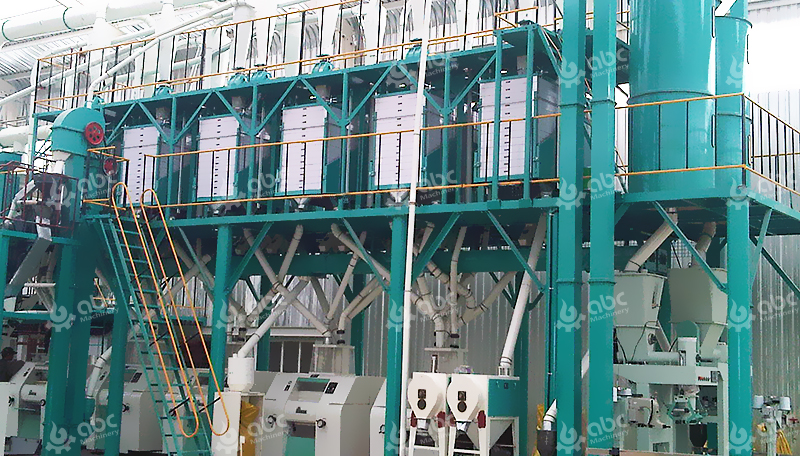

M6FTF Series flour mill equipment

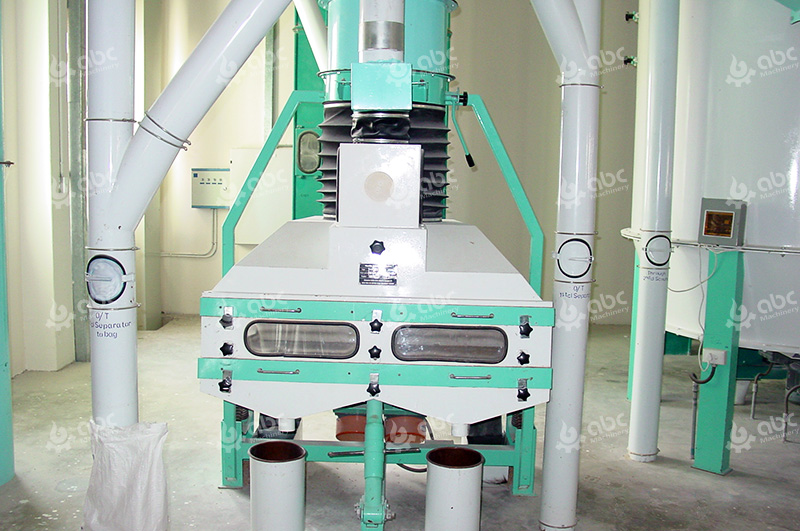

Normally we adopt this frame when the input capacity is small. This series flour mill equipments absorbed the advanced technical both at home and abroad. The steel frame construction, small volume, high output, good quality, high milling rate, low gray powder, few consume. The cleaning section includes double-bin sifter, two beatrer, two destoner, one washer, the milling section adopt the latest craft of husk and grain important, gradational and making flour through impact each other.

Main Technical Data
MODEL OUTPUT (T/24H) POWER (KW) L×W×H (M) REMARK
M6FTF-40 40 118.3 27.2×7×8 Gradational flour
M6FTF-50 50 159.9 27.2×7×8 Gradational flour
M6FTF-60 60 170 25×7.5×8 Gradational flour
M6FTF-80 80 270 28×7.5×8 Gradational flour



Types by using plan sifter

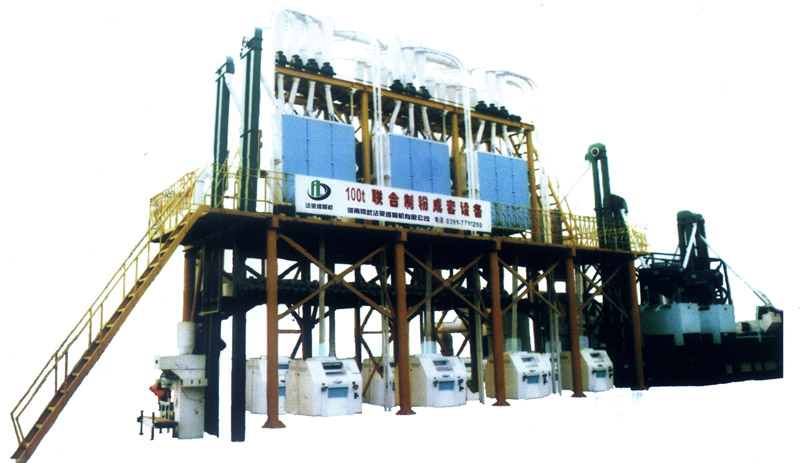

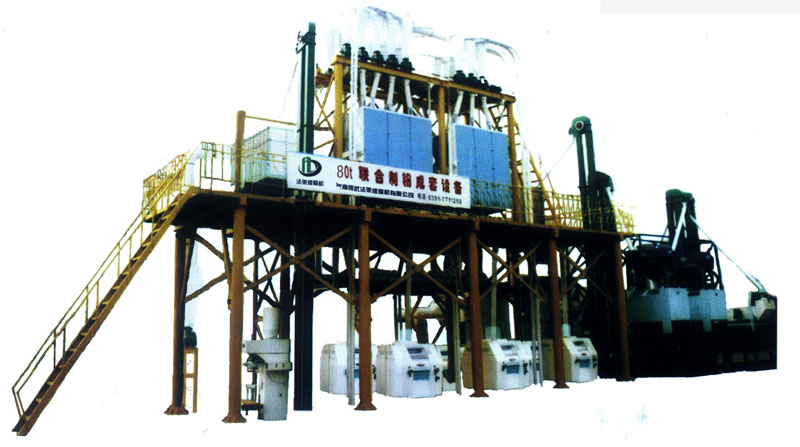

80TPD Flour Mill Equipment 100TPD Flour Mill Equipment
80TPD Flour Mill Equipment 100TPD Flour Mill Equipment

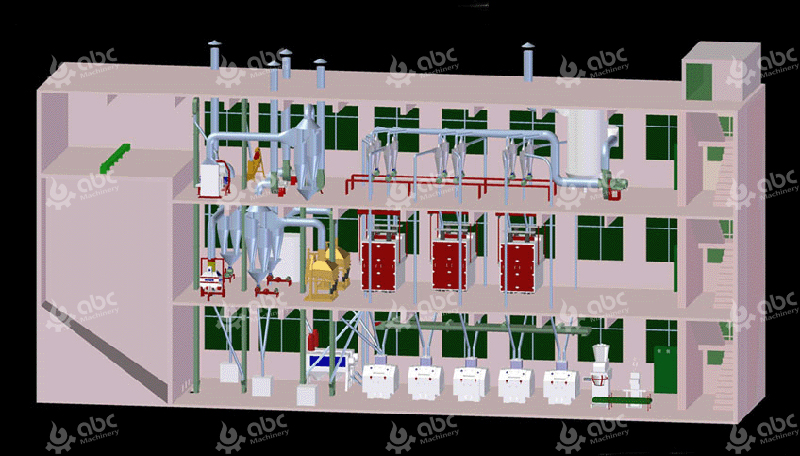

Concrete Storey Construction

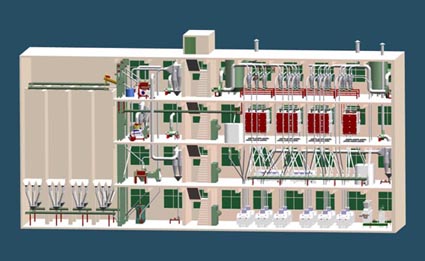

Section (4 floors) of flour mill equipment
Section (4 floors) of flour mill equipment

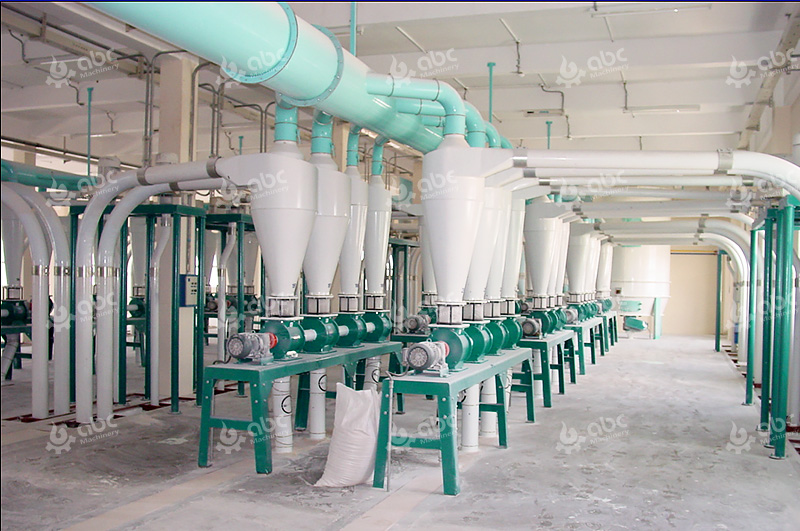

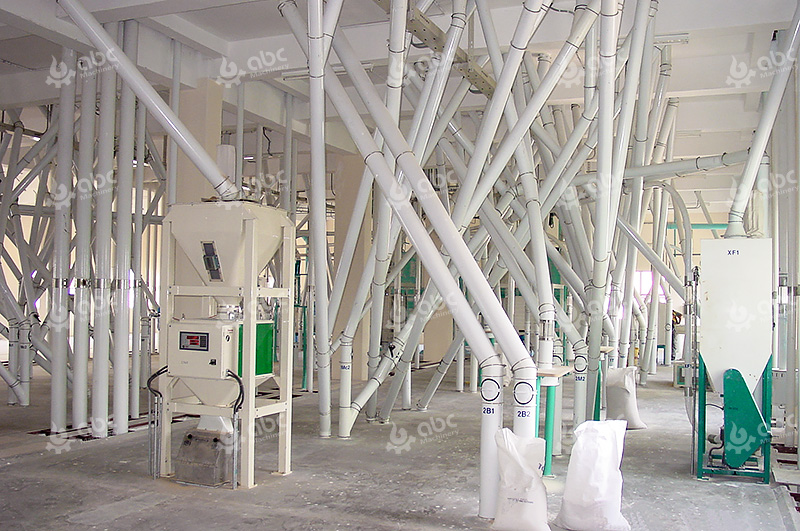

The story of aspirarting head The story of distributing system

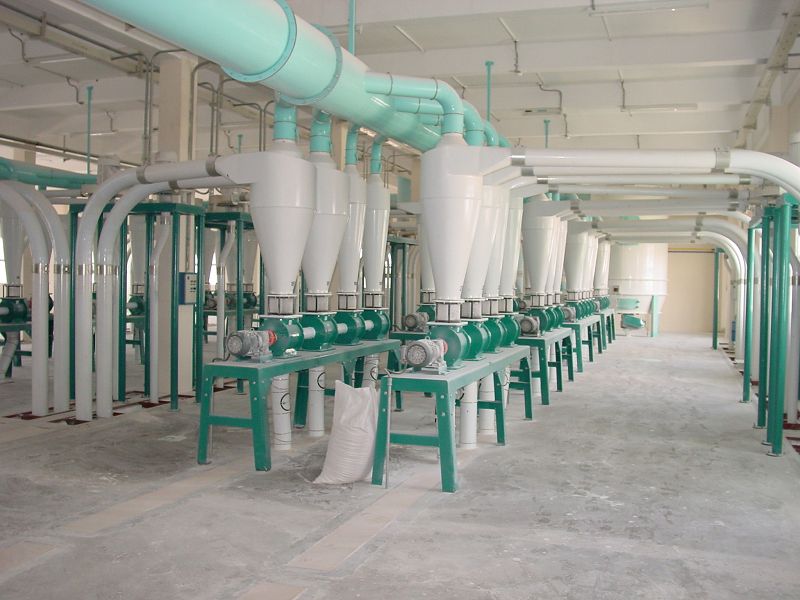

The story of aspirarting head
The story of distributing system

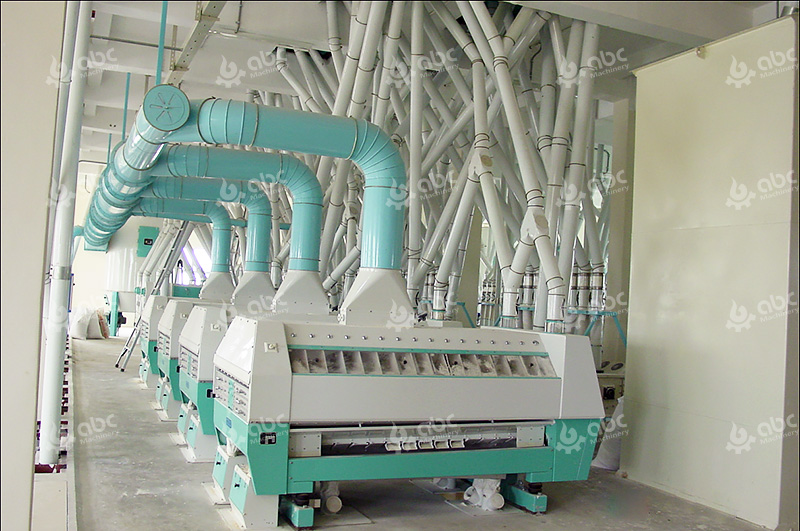

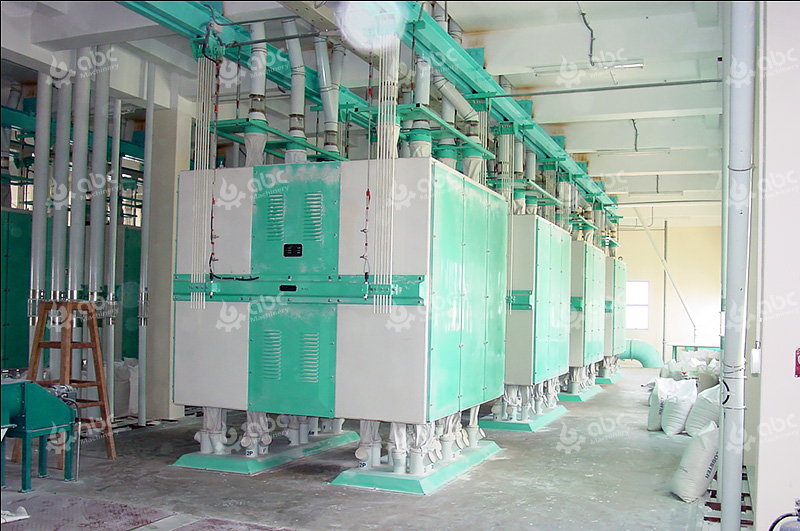

The storey of purifier system The storey of siftering system
The storey of purifier system The storey of siftering system

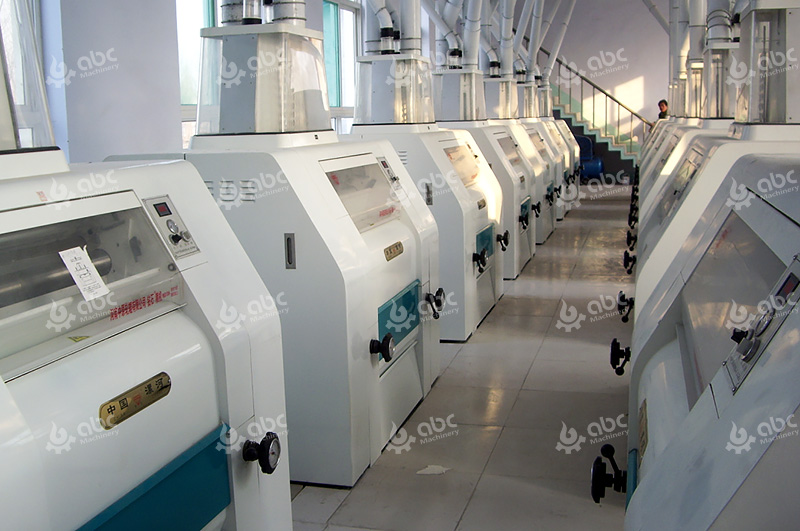

The storey of flour milling machine Section of flour milling machine
The storey of flour milling machine Section of flour milling machine



Normally, we adopt this frame when the input capacity is large. The range we can do from 80 to 250TPD.

Main Technical Data
INPUT (T/24H) POWER (KW) L×W×H (M) REMARK
80-250   4-6 storey building Gradational flour



Main Equipment of Flour Mill Equipment:
